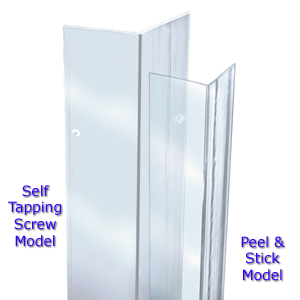

Clear Visibility Corner Guards

These easy-to-install, clear corner guards allows existing wall colors and patterns to show through while still providing sufficient protection.

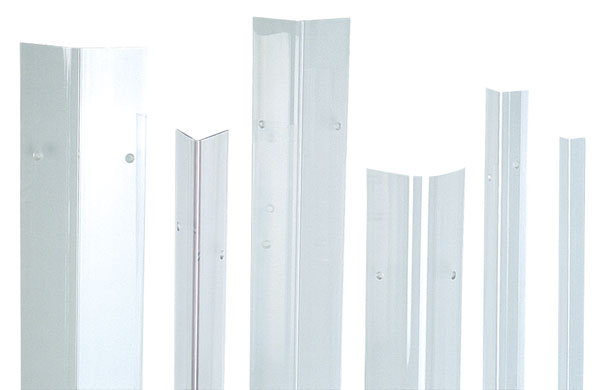

Three wing size options: 3/4" (19mm), 1 1/8" (29mm) and 2½" (64mm) with corresponding thicknesses: .050" (1.3mm), .075" 1.9mm) and .100" (2.5mm) thicknesses.

Manufactured in 4' (1.22m) and 8' (2.44m) standard heights, custom heights available.

Optional - 2" wing 90°, 2½" wing 90° Bullnose, 2½" wing 45°, 2½" wing 135°.

• Tensile Strength: 300 ft. lbs./sq. in.
• Impact Resistance: 16 ft. lb./in. (ASTM D-256).
• Elongation 8%.
• Rockwell Hardness: 70 (ASTM D-785), IZOD.
• Fire Test: Self-extinguishing.
• Flammability: 94V-2 (UL Bulletin 94).

Item No: CG Clear Visibility

Standard Sizes

Type	Qty. 1+	Color	Quantity
4' Tall --- 3/4" Wings --- w/Self-Tap Nails	$9.90	Clear
8' Tall --- 3/4" Wings --- w/Self-Tap Nails	$15.35	Clear
4' Tall --- 1-1/8" Wings --- Peel & Stick	$10.60	Clear
4' Tall --- 1-1/8" Wings --- w/ Self-Tap Nails	$7.50	Clear
8' Tall --- 1-1/8" Wings --- Peel & Stick	$19.60	Clear
8' Tall --- 1-1/8" Wings --- w/ Self-Tap Nails	$14.90	Clear
4' Tall --- 1-1/2" Wings --- Peel & Stick	$14.90	Clear
4' Tall --- 1-1/2" Wings --- w/Self-Tap Nails	$10.20	Clear
8' Tall --- 1-1/2" Wings --- Peel & Stick	$26.80	Clear
8' Tall --- 1-1/2" Wings --- w/Self-Tap Nails	$20.30	Clear
4' Tall --- 2" Wings --- Peel & Stick	$24.00	Clear
4' Tall --- 2" Wings --- w/Self-Tap Nails	$13.00	Clear
8' Tall --- 2" Wings --- Peel & Stick	$44.90	Clear
8' Tall --- 2" Wings --- w/Self-Tap Nails	$26.10	Clear
4' Tall --- 2-1/2" Wings --- Peel & Stick	$29.30	Clear
4' Tall --- 2-1/2" Wings --- w/Self-Tap Nails	$18.30	Clear
8' Tall --- 2-1/2" Wings --- Peel & Stick	$55.40	Clear
8' Tall --- 2-1/2" Wings --- w/Self-Tap Nails	$36.60	Clear
4' Tall --- 2-1/2" Wings --- 45 Degree --- Peel & Stick	$30.70	Clear
4' Tall --- 2-1/2" Wings --- 45 Degree --- w/Self-Tapping Nails	$19.80	Clear
8' Tall --- 2-1/2" Wings --- 45 Degree --- Peel & Stick	$58.30	Clear
8' Tall --- 2-1/2" Wings --- 45 Degree --- w/Self-Tapping Nails	$39.60	Clear
4' Tall --- 2-1/2" Wings --- 135 Degree --- Peel & Stick	$30.70	Clear
4' Tall --- 2-1/2" Wings --- 135 Degree --- w/Self-Tapping Nails	$19.80	Clear
8' Tall --- 2-1/2" Wings --- 135 Degree --- Peel & Stick	$58.30	Clear
8' Tall --- 2-1/2" Wings --- 135 Degree --- w/Self-Tapping Nails	$39.60	Clear
4' Tall --- 2-1/2" Wings --- 90 Degree --- Bullnose Peel & Stick	$30.70	Clear
4' Tall --- 2-1/2" Wings --- 90 Degree --- Bullnose w/Self-Tapping Nails	$19.80	Clear
8' Tall --- 2-1/2" Wings --- 90 Degree --- Bullnose Peel & Stick	$58.30	Clear
8' Tall --- 2-1/2" Wings --- 90 Degree --- Bullnose w/Self-Tapping Nails	$39.60	Clear
4' Tall --- 3" Wings --- w/Self-Tap Nails	$21.80	Clear
8' Tall --- 3" Wings --- w/Self-Tap Nails	$43.40	Clear

Standard Colors (Click any image to Enlarge)

Clear
