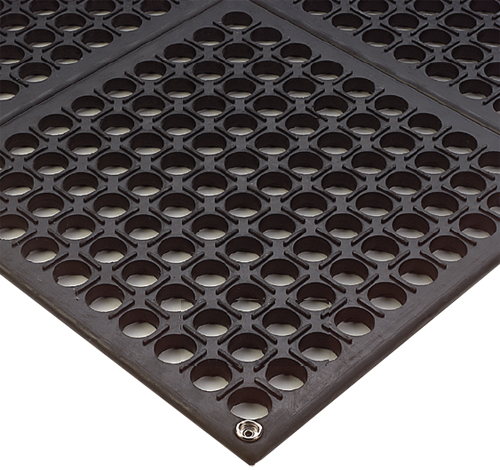

Electrically Conductive Interlocking Drainage Mats

Electrically Conductive Interlocking Drainage Mats are anti-static modular Tiles that provide protection from static discharge and worker discomfort. Its rubber compound is conductive throughout for consistent performance.

• The 3' x 3' size is ideal for individual workstations, yet has interlocks on two sides so multiple mats can be snapped together, in virtually any configuration without additional connectors.

• For maximum effectiveness, ground the mat and keep the surface clean.

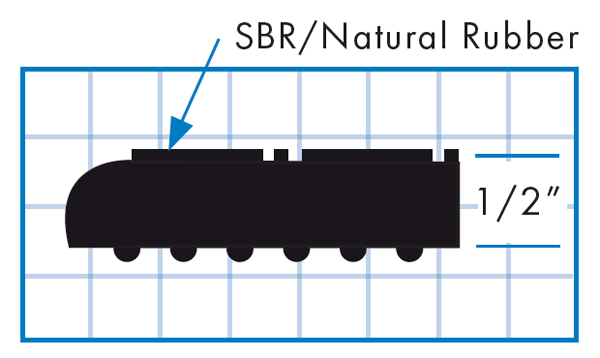

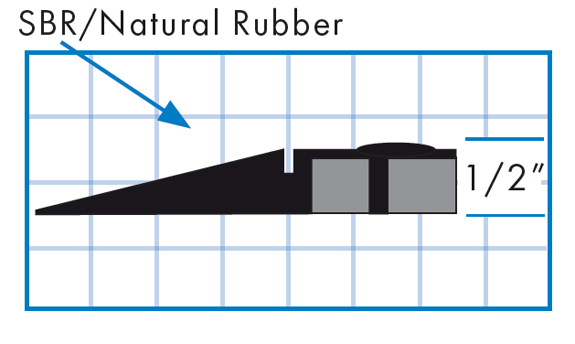

• Available 1/2" thick.

Resistivity:
• RTT: 1 x 106 - 1 x 109 Ohms (1,000,000 - 1,000,000,000 Ohms)
• RTG: 1 x 106 - 1 x 109 Ohms (1,000,000 - 1,000,000,000 Ohms)
• Meets ANSI/ESD 20.20 requirements

• MUST USE MAT IN CONJUNCTION WITH GROUNDING CORD / HEEL GROUNDER TO FUNCTION PROPERLY (sold separately).

Item No: SECITDM

Have a question? We're here to help!

Standard Configuration

Standard Sizes (Approximate)
Tap Row For Volume PricingorShow All
QuantityPrice
1-50 $107.84
51-100 $106.48
101-250 $104.23
251-2500 $102.25
QuantityPrice
1-50 $17.51
51-100 $17.24
101-250 $16.94
251-2500 $16.76
QuantityPrice
1-50 $17.51
51-100 $17.24
101-250 $16.94
251-2500 $16.76
QuantityPrice
1-50 $29.74
51-100 $29.12
101-250 $28.55
251-2500 $28.07
Standard Colors (Click any image to Enlarge)
